2011 FZS

  • OVERVIEW
  • FEATURES
  • SPECS
  • ACCESSORIES

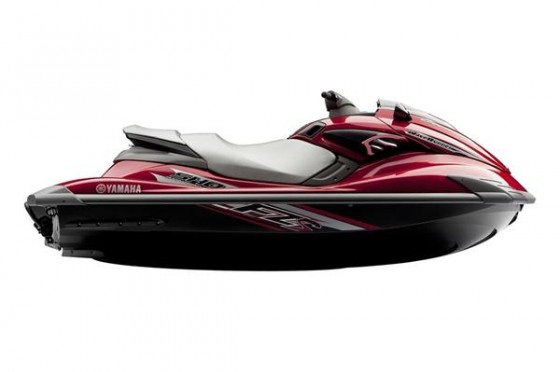

The high performance watercraft with versatility.

Three distinct riding styles. One dominant machine. Designed to accommodate the rigorous demands of serious water enthusiasts, the FZS features telescopic steering with three distinct riding positions. It also possesses a powerful 1812cc Super High Output, supercharged engine, perfectly matched to the lightweight and nimble NanoXcel hull, while the extended seat and tow hook allow three people to experience the ultra high-performance ride or enjoy water sports. The FZS is a prolific example of how versatility and ultra high-performance can work together seamlessly.


The Powerplant
  • The FZS is powered by a 1.8 liter, supercharged, super high output Yamaha Marine Engine. This 1812cc engine, which is purpose-built for the marine environment, is the largest displacement engine ever installed in a personal watercraft. It is also the only engine in the high-performance, four-stroke category optimized to run on the least expensive Regular Unleaded fuel.
  • Electronic Fuel Injection (EFI): Throttle position sensor (TPS) and intake air pressure and air temperature sensors supply the optimum air/fuel mixture. The results are a smooth, high power output with low fuel consumption and low exhaust emissions.
  • Specially Designed, One-piece Cylinder and Crankcase Assembly: Provides tremendous engine rigidity that\'s lighter and stiffer than two-piece designs.
  • Slant Detection Switch: Electronic switch stops engine and oil pumps immediately if watercraft becomes overturned, protecting motor from unwanted water ingestion.
  • High Volume Intake Box: With water repellent air filter and flame arrestors.
  • SAWS (Scavenger Assist Wet Sump): Equipped with a high-performance, compact gas-liquid separator, this engine uses Yamaha\'s unique ultra compact lubrication system and the oil pan structure.
  • Thermostatic Cooling System: Water flow through the engine is automatically controlled through a thermostat sensor.
  • Corrosion Protection System: Sacrificial zinc anodes protect the engine from harmful galvanic corrosion. Stainless steel fasteners (nuts, bolts, hardware) provide a long service life. Cylinders, cases and heads are all treated with a durable oxide coating to form a barrier between corrosion and expensive engine parts.
  • Electronically Controlled, Variable Ignition Timing: For exact ignition advance control at all throttle positions and RPMs.
  • Direct Ignition: For more efficient combustion.
 The Jet Pump Propulsion System
  • The FZS 155mm hyper-flow jet pump propulsion system with three-blade stainless steel impeller is designed to maximize water flow for high performance. The FZR pump configuration provides excellent hook-up and smooth acceleration.
  • The industry’s only Reverse with Traction Control technology: Maintains the perfect RPM to provide the optimal speed for effectively maneuvering when the watercraft is in reverse.
  • Quick Shift Trim System (Q.S.T.S.): Mechanically operated, this system offers instant change in the attitude of the watercraft while underway allowing for tighter turns or quicker acceleration on plane, as the rider prefers. Q.S.T.S. offers 24 degrees of total trim range.
  • Stainless Steel Impeller Housing Liner: For high durability, the liner maintains accurate clearance tolerances between the impeller and the housing.
  • High Flow Intake Duct and Grate: The dynamic shape of these items directs water flow into the pump for better thrust, performance and hook up.
  • Pumps are Manufactured with YDC30: A combination of zinc and copper alloys, developed by Yamaha marine engineers, that offers excellent corrosion protection.
 The NanoXcel Hull and Deck
  • The FZS features the world’s first hulls and decks manufactured through the use of cutting edge nanotechnology. Yamaha’s new NanoXcel ultra-lightweight, high strength material reduces the weight of the hull, deck and liner by 25% and provides performance gains in acceleration, top speed and performance-driven handling. Additionally, the NanoXcel material offers a shinier, gem-like finish which reduces surface tension on the water, providing a more nimble, responsive ride.
  • All New Performance-Enhanced Hull: Provide excellent agility and maneuverability.
  • Sponson Design: Provides added straight-line comfort and an improved two and three-up riding experience.
 Additional Features
  • Telescopic Steering: Three variable positions designed to give the driver the option of standup riding, traditional sit-down riding or low to get even closer to the action.
  • Dual Analog Meters: Provides the operator a quick read on speed, RPM, fuel level, low fuel warning, low oil pressure warning, battery voltage, overheat warning, hour meter, check engine light with self-diagnostic function and the industry\'s only audible warning system.
  • Industry\'s First Remote Controlled Transmitter: With the touch of a button on Yamaha’s innovative remote controlled transmitter, you can activate and deactivate the FZS\'s digital security system and Low RPM Mode from up to 30 feet away.
  • Low RPM Mode™: The personal watercraft industry’s first fuel saving feature, Low RPM can reduce fuel consumption by up to 26% based on average annual use.
  • Yamaha Security System: This security system that can be activated with the touch of a button ensures that no one starts the FZS without your permission.
  • 21.3 Gallons of Total Storage: Includes a large, watertight storage compartment under the seat and the glove box.
  • Extra Large Boarding Platform with Retractable Reboarding Step: Provides a stable area for reboarding.
  • Dual Mirrors: Automotive style and convenience.
  • Finger Throttle Lever: Provides added comfort while reducing hand fatigue.
  • Yamaha\'s Trademarked Visibility Spout®: A waterspout from the rear of the craft that improves the watercraft’s conspicuity.

FEATURE2011 FZS
Bore/Stroke86 x 78mm
Carburetor/InjectorElectronic Fuel Injection
Compression Ratio8.6:1
CoolingOpen-Looped; Water
Displacement1812cc
Dry Weight369kg
Engine Type4-Cylinder; 4-Stroke; Supercharged; Intercooled
FuelRegular Unleaded
Fuel Capacity70 L
Height1.16m
Length3.37m
Width1.23m
Hull MaterialNanoXcel
IgnitionDirect Ignition
Ignition Timing20 BTDC
Impeller3-Blade; Stainless Steel
Oil Capacity4.2 L
Pump155mm Axial Flow
SparkplugNGK LFR6A
StarterElectric
Exhaust TypeWet
Lubrication TypeWet Sump
TransmissionDirect Drive from Engine
Vehicle Capacity2 person/ 160 kg
Storage Capacity80.6 L
ColourSilver Metallic; Crimson Red Metallic
;
